[spring] member Business,Dataservice(xml방식)

STS

스프링 툴 스위트(STS, Spring Tool Suite)란 이클립스 기반 스프링 애플리케이션을 개발 하기 위한 개발 환경을 의미하며, 오픈소스이다.



다운로드 : spring-tool-suite-3.9.12.RELEASE-e4.15.0-win32-x86_64.zip

https://dist.springsource.com/release/STS/index.html



해당 파일 압축을 풀기

경로 ~\sts-bundle\sts-3.9.15.RELEASE = STS.exe (실행파일)

---

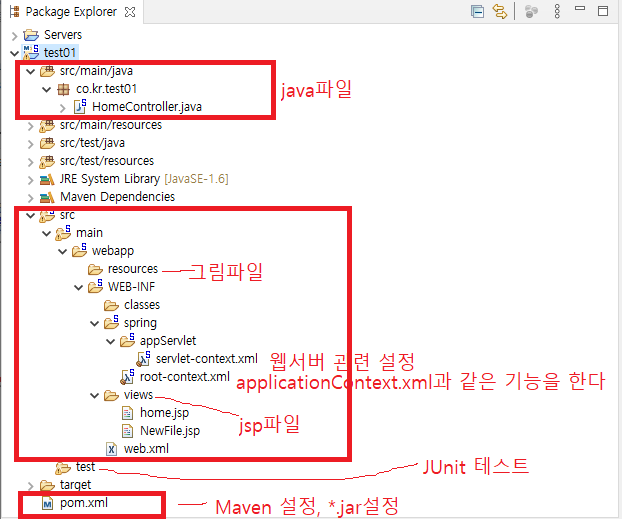

1. STS 프로젝트 만들기

sts + mybatis + mysql

---

2. mysql db, table 만들기

cmd 창

C:\Users\ehdbs>cd c:\mysql5.5

c:\MySQL5.5>cd bin

c:\MySQL5.5\bin>mysql -u root -p
Enter password: *****
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.5.62 MySQL Community Server (GPL)

Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> create database ch20;
Query OK, 1 row affected (0.00 sec)

mysql> use ch20;
Database changed
mysql> create table member(
    -> id varchar(20) not null primary key,
    -> pw varchar(15) not null,
    -> name varchar(30) not null,
    -> email varchar(30) not null,
    -> tel     varchar(14) not null,
    -> zipcode varchar(10) not null,
    -> addr varchar(50) not null,
    -> addr2 varchar(30) not null,
    -> regdate date not null
    -> );
Query OK, 0 rows affected (0.01 sec)

mysql> create table board(
    -> num int not null primary key auto_increment,
    -> writer varchar(30) not null,
    -> subject varchar(40) not null,
    -> pw varchar(15) not null,
    -> regdate datetime,
    -> readcount int default 0,
    -> ref int not null,
    -> re_step int not null,
    -> re_level int not null,
    -> content text not null,
    -> ip varchar(20) not null
    -> );
Query OK, 0 rows affected (0.01 sec)



---

3. pom.xml에 library 추가 [ https://mvnrepository.com/ 여기서 검색 가능 ]

• spring-jdbc (스프링의 JDBC, Spring version과 동일)
• mysql-connector-java
• mybatis
• mybatis-spring (스프링에서 Mybatis 연동을 위한 모듈)
• spring-test

pom.xml

		<!-- 추가 library -->
		<!-- MyBatis -->
      <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis</artifactId>
         <version>3.2.8</version>
      </dependency>

      <!-- mybatis-spring -->
      <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis-spring</artifactId>
         <version>1.2.2</version>
      </dependency>

      <!-- Mysql -->
      <dependency>
         <groupId>mysql</groupId>
         <artifactId>mysql-connector-java</artifactId>
         <version>5.1.31</version>
      </dependency>

      <!--spring-jdbc -->
      <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-jdbc</artifactId>
         <version>3.2.3.RELEASE</version>
      </dependency>
      <!-- //추가 library -->

---

4. web.xml 에 한글 인코딩필터 설정

web.xml

   <!-- 한글처리 -->
   <filter>
   <filter-name>characterEncodingFilter</filter-name>

   <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>

   <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
   </init-param>

   <init-param>
      <param-name>forceEncoding</param-name>
      <param-value>true</param-value>
   </init-param>
    </filter>

   <filter-mapping>
      <filter-name>characterEncodingFilter</filter-name>
      <url-pattern>/*</url-pattern>
   </filter-mapping>

---

5. mybatis-config.xml 설정 파일 생성 [위치 : Java Resources/src/main/resources/]



1) MemberDTO 를 사용하며 Mapper 로 사용하는 xml 들을 설정한다.

2) root_context.xml 에서 SqlSessionFactoryBean 클래스를 통해 MyBatis 방식으로 비즈니스 업무하도록 설정한다.



mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd" >

<configuration>
	<typeAliases>
	  <typeAlias alias="member77" type="co.kr.Hello.dto.MemberDTO"/>
	</typeAliases>

	<mappers>
		<mapper resource="/mybatis/member.xml"/>
	</mappers>
</configuration>

---

6. root-context.xml

Config(클래스-어노테이션) 방식에서 MyBatisConfig 와 같은 역할이다!(@Configuration)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">

	<!-- Root Context: defines shared resources visible to all other web components -->

	<bean id="dataSource" class="org.apache.ibatis.datasource.pooled.PooledDataSource">
	    <property name="driver" value="com.mysql.jdbc.Driver"/>
	    <property name="url" value="jdbc:mysql://localhost:3306/ch20?useUnicode=true&amp;characterEncoding=UTF-8"/>
	    <property name="username" value="root"/>
	    <property name="password" value="12345"/>
	</bean>

	<bean id="transactionManager"
	    class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
	    <property name="dataSource" ref="dataSource"></property>
	</bean >

	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
	    <property name="dataSource" ref="dataSource"></property>
	    <property name="configLocation"
	        value= "classpath:/mybatis/mybatis-config.xml">
	    </property>
	</bean>

	<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
	    <constructor-arg ref="sqlSessionFactory"></constructor-arg>
	</bean>
</beans>



Config(클래스-어노테이션) 방식과 비교해보기

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">

	<!-- Root Context: defines shared resources visible to all other web components -->

	<bean id="dataSource" class="org.apache.ibatis.datasource.pooled.PooledDataSource">
	    <property name="driver" value="com.mysql.jdbc.Driver"/>
	    <property name="url" value="jdbc:mysql://localhost:3306/ch20?characterEncoding=UTF-8"/>
	    <property name="username" value="root"/>
	    <property name="password" value="12345"/>
	</bean>

	<bean id="transactionManager"
	    class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
	    <property name="dataSource" ref="dataSource"></property>
	</bean >

	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
	    <property name="dataSource" ref="dataSource"></property>
	    <property name="configLocation"
	        value= "classpath:/mybatis/mybatis-config.xml">
	    </property>
	</bean>

	<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
	    <constructor-arg ref="sqlSessionFactory"></constructor-arg>
	</bean>
</beans>

---

7. memberDTO

package co.kr.Hello.dto;
import java.util.Date;

//모델빈
public class MemberDTO {
	//전역변수=필드=프로퍼티=property

	private String id;
	private String pw;
	private String name;

	private String email;
	private String tel;

	private String zipcode;
	private String addr;
	private String addr2;
	private Date regdate;

	public MemberDTO() {}

	public String getId() {
		return id;
	}

	public void setId(String id) {
		this.id = id;
	}
    //...getter,setter 생략

}

---

8. member.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="member">
	<!-- id중복체크, 내 정보 수정 -->
	<!-- public memberDTO selectOne(String id){db로~~} 와 같은 상황!! -->
	<!-- member77 로 별칭. 또는  co.kr.Hello.dto.MemberDTO 로 풀네임도 가능(해당 설정은 mybatis-config.xml 을 만들어 설정해줬다.)-->
	<select id="selectOne" parameterType="String" resultType="member77">
		select * from member
		where id=#{id}
	</select>

	<!-- 회원가입 -->
	<insert id="insertMember" parameterType="co.kr.Hello.dto.MemberDTO">
		insert into member(id,pw,name,email,tel,zipcode,addr,addr2,regdate)
		values(#{id},#{pw},#{name},#{email},#{tel},#{zipcode},#{addr},#{addr2},NOW())
	</insert>

	<!-- 로그인,map사용 -->
	<select id="selectLogin" parameterType="map" resultType="member77">
		select * from member
		where id=#{id} and pw=#{pw}
	</select>

	<!-- 내 정보 수정 -->
	<update id="memberUpdate" parameterType="member77">
		update member
		set pw=#{pw},name=#{name},email=#{email},tel=#{tel},zipcode=#{zipcode},
		addr=#{addr},addr2=#{addr2}
		where id=#{id}
	</update>

	<!-- 회원탈퇴 -->
	<delete id="memberDelete" parameterType="String">
		delete from member
		where id=#{id}
	</delete>
</mapper>

---

9. MemberController

package co.kr.Hello;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.beans.factory.annotation.Autowired;
import org.apache.ibatis.session.SqlSession;//Mybatis �� ����
import java.util.*;//HashMap
import co.kr.Hello.dto.MemberDTO;

import javax.servlet.http.HttpServletRequest;
import java.io.IOException;
import javax.naming.NamingException;

import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.bind.annotation.ModelAttribute;

@Controller
public class MemberController {
	@Autowired private SqlSession sqlSession;// sqlSessionFactory(mapper 설정) 를 저장한 sqlSession

	@RequestMapping("main.do")
	public String mm() {
		return "main";// views/main.jsp
	}

	//회원가입 폼
	@RequestMapping("insertForm.do")
	public String insertForm() {
		return "/member/insertForm";//views/member/insertForm.jsp
	}

	//id중복체크(map사용)
	@RequestMapping(value="confirmID.do",method=RequestMethod.POST)
	public String idCheck(String id,Model model) {
		int check = -1;
		MemberDTO memberDTO = sqlSession.selectOne("member.selectOne",id);//'member.xml의 namespace'.'select태그의 id', 매개값
		if(memberDTO==null) {
			check=1;//사용가능한 id
		}else {
			check=-1;//사용 불가능한 id
		}

		model.addAttribute("check",check);
		return "/member/confirmID";//views/member/confirmID.jsp
	}

	//회원가입 db 저장
	@RequestMapping(value="insertPro.do",method=RequestMethod.POST)
	public String insertPro(@ModelAttribute("memberDTO") MemberDTO memberDTO,
			HttpServletRequest request)throws IOException,NamingException {

		String email1 = request.getParameter("email1");
		String email2 = request.getParameter("email2");
		String email = email1+email2;
		memberDTO.setEmail(email);

		String tel1 = request.getParameter("tel1");
		String tel2 = request.getParameter("tel2");
		String tel3 = request.getParameter("tel3");
		String tel = tel1+tel2+tel3;
		memberDTO.setTel(tel);

		sqlSession.insert("member.insertMember",memberDTO);//namespace.insert.insert태그의 id, 매개값
		return "main";
	}

	//로그인 폼
	@RequestMapping("loginForm.do")
	public String loginForm() {
		return "/member/loginForm";//views/member/loginForm.jsp
	}

	//로그인 db 업무
	@RequestMapping(value="loginPro.do",method=RequestMethod.POST)
	public String loginPro(String id, String pw,Model model) {
		//Map, HashMap
		HashMap<String, String> map = new HashMap<String, String>();
		map.put("id", id);
		map.put("pw", pw);

		MemberDTO mdto = sqlSession.selectOne("member.selectLogin",map);

		if(mdto==null) {//일치하는 회원이 없다.
			model.addAttribute("msg","아이디 또는 비밀번호가 일치하지 않습니다.");
			return "/member/loginForm";
		}

		//일치하는 회원이 있다.
		model.addAttribute("mdto",mdto);
		return "/member/loginSuccess";
	}

	//로그아웃
	@RequestMapping("logOut.do")
	public String logOut() {
		return "/member/logOut";//;logOut.jsp
	}

	//회원정보수정 폼
	@RequestMapping(value="memUpdateForm.do",method=RequestMethod.POST)
	public String updateForm(String id, Model model) {

		MemberDTO mdto = sqlSession.selectOne("member.selectOne",id);

		//example@daum.net
		String email = mdto.getEmail();
		int idx=email.indexOf("@");
		String email1 = email.substring(0,idx);//example
		String email2 = email.substring(idx);//daum.net
		model.addAttribute("email1",email1);
		model.addAttribute("email2",email2);

		//01023456789
		String tel = mdto.getTel();
		String tel1 = tel.substring(0,3);//010
		String tel2 = tel.substring(3,7);//2345
		String tel3 = tel.substring(7);//6789

		model.addAttribute("tel1",tel1);
		model.addAttribute("tel2",tel2);
		model.addAttribute("tel3",tel3);

		model.addAttribute("mdto",mdto);

		return "/member/updateForm";//updateForm.jsp
	}

	//회원정보수정 db 처리
	@RequestMapping(value="memIpdatePro.do",method=RequestMethod.POST)
	public String memIpdatePro(@ModelAttribute("memberDTO")MemberDTO memberDTO,
			HttpServletRequest request) throws IOException,NamingException{

		String email1 = request.getParameter("email1");
		String email2 = request.getParameter("email2");
		String email = email1+email2;
		memberDTO.setEmail(email);

		String tel1 = request.getParameter("tel1");
		String tel2 = request.getParameter("tel2");
		String tel3 = request.getParameter("tel3");
		String tel = tel1+tel2+tel3;
		memberDTO.setTel(tel);

		sqlSession.update("member.memberUpdate",memberDTO);

		return "main";
	}

	//회원탈퇴 db 처리
	@RequestMapping("deleteMember.do")
	public String deleteMember(String id) {

		sqlSession.delete("member.memberDelete",id);
		return "main";
	}
}//class-end
